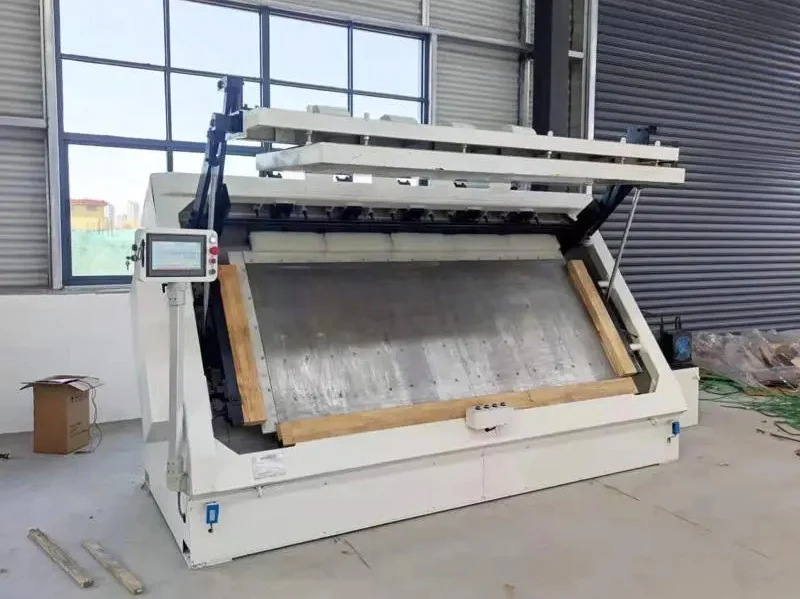

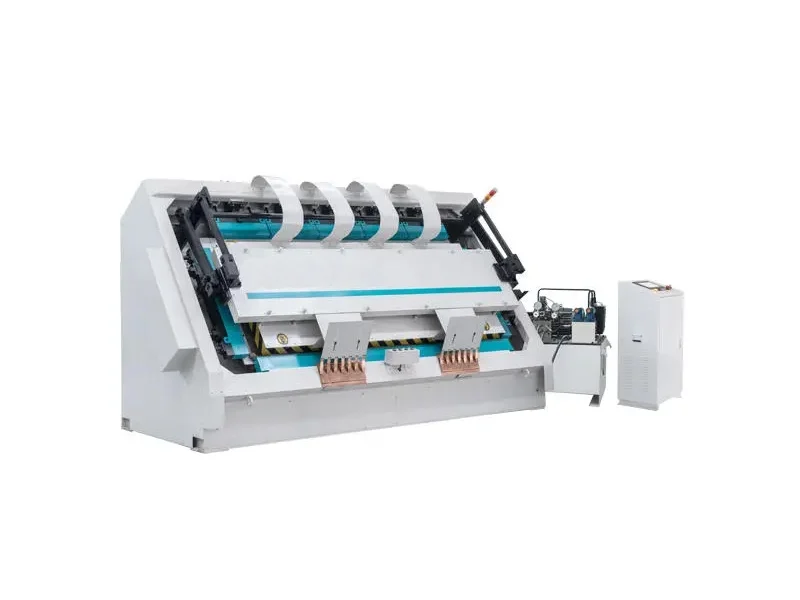

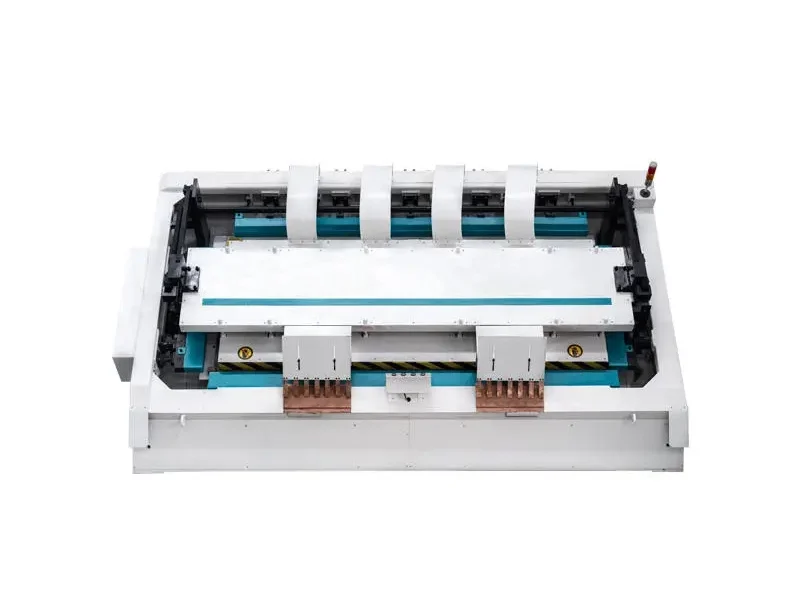

High frequency wood door frame joining assembly machine is used to assemble solid wood frames like door, window, cabinet door, etc. High frequency slat wood door frame assembly machine includes high frequency generator, main press, hydraulic system and control system.
Applications
- Straight angle solid wood frame joining;
- Slat lamination;
- Door pocket lamination;
- Solid wood door assembly;
- Board joining.
Features – High frequency wood door frame joining assembly machine
- High frequency dielectric heating, only heat glue lines, faster and power saving;
- Slant working table for easy operation, loading & unloading;
- Multiple protections, unique alarm design to guarantee operation safety;
- 3 minutes can finish one cycle;
- LED fault self-checking and alarm system;
- Assembly frames in 3 directions pressing.
Specs – High frequency wood door frame joining assembly machine
| Model | DAP-2409-ABT | DAP-2412-ABT | DAP-3012-ABT |
|---|---|---|---|
| Power Supply | 380V, 50Hz or custom | 380V, 50Hz or custom | 380V, 50Hz or custom |
| Max Working Size | 2460x960mm | 2460x1220mm | 3000x1220mm |
| Control | PLC, HMI screen | PLC, HMI screen | PLC, HMI screen |
| HF Power | 20kw | 20kw | 20kw |
| Heating Time | 1 to 3 minutes | 1 to 3 minutes | 1 to 3 minutes |
| Frequency | 6.78MHz | 6.78MHz | 6.78MHz |
| Cooling Type | Wind cooling | Wind cooling | Wind cooling |
| Front Pressure | 6T | 6T | 6T |
| Upper & Lower Pressure | 25T | 25T | 30T |
| Left & Right Pressure | 4T | 4T | 4T |
| Weight | 5 Tons | 5.5 Tons | 6 Tons |
