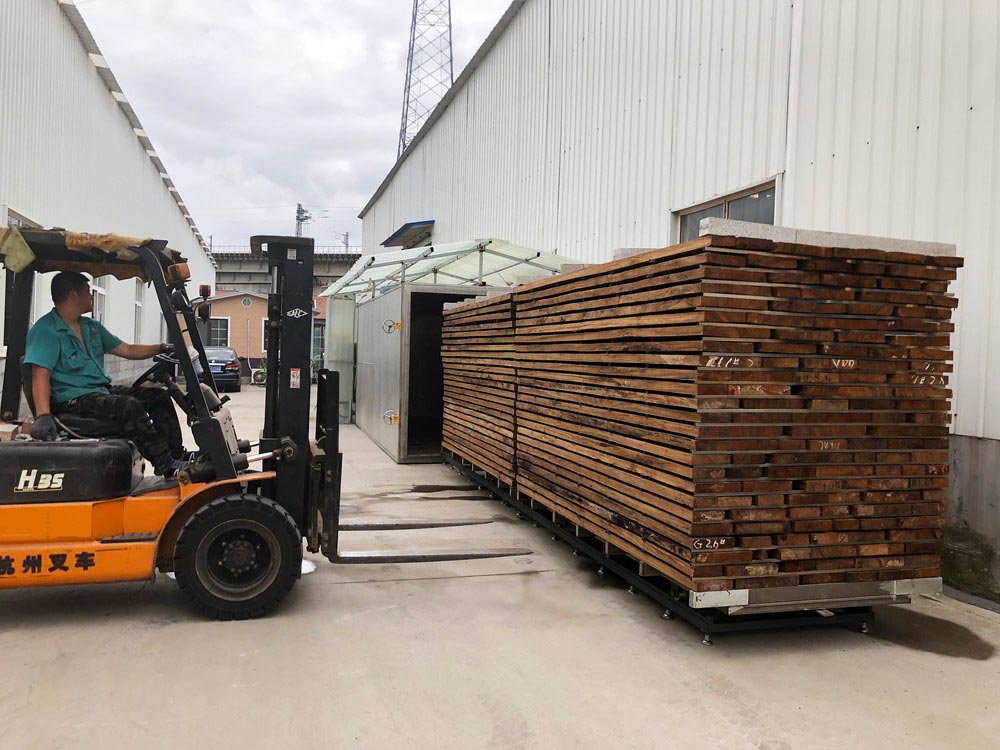

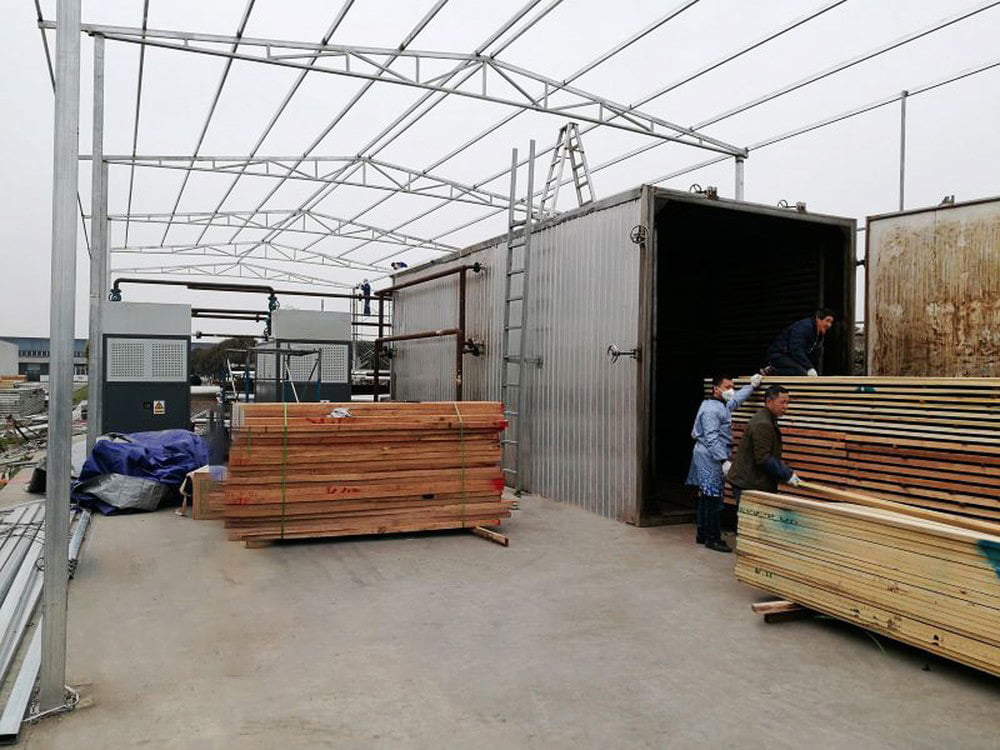

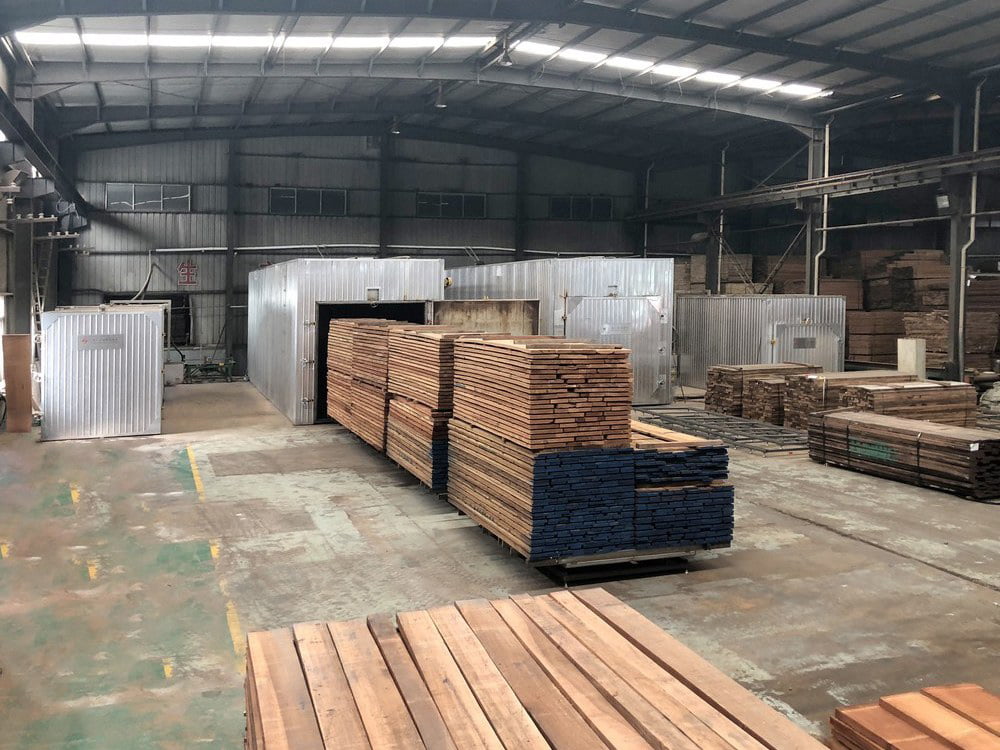

Wood Thermally Treatment Modified Kiln System

[dt_slideshow width=”1000″ height=”750″ posts=”high-temperature-wood-treatment-carbonization-kiln”]

Our wood thermally treatment modified kiln system can use electric heating for thermal oil boiler theating as heat source, PLC automatic control, HMI screen easy to operate.

Features

Inner wall material: 304stainless steel plates
Kiln body outer plate: aluminium alloy orange peel embossed corrugated board
Kiln body skeleton: Carbon steel square pipe and I-beam steel structure
Single open kiln door: aluminium alloy structure
Control mode: touch screen automatic
Control style: No needing special person look after, only occasionally inspection
Circle style: top winding type, forced convective cycle
Heating mode: electrical heating or thermal oil boiler
Conditioning humidity: physical automatically is main, electric steam is assistant
Cooling mode: forced cooling
Steam treatment: by dynamic condensation
Loading mode: electric all stainless steel rail car
Equipment platform: I-beams steel structure

Always focused on heat treatment equipment

Strong aftersales market support

Rigorous, mature heat process

Free heat process upgrade

Powerfull functions: high temperatue finalization, in depth carbonization, secondary drying, health balance

Improve quality: not easy to crack, bend

Physical treatment: no chemicals

Coniferous wood fresh cutting directly carbonizing no need to dry first

Color depth: adjustable, in uniform

Physical exchange: completely degrease, desugar, dilute tree sap

Environmental design: close cycle treatment, 0 waste air water emission

Tail gas treatment: adjustable, both wind & water cooled

Custom made to satisfy customers’ requirements

Effective capacity: 10-100cbm (actual piling) ty: not easy to crack, bend

Kiln temperature: ≤240℃

Circulation: wind, top, side, end

Conditioning: physical & electric

Loading: electric rail cart

Control: automatic, no need worker around

Construction: plat ground
